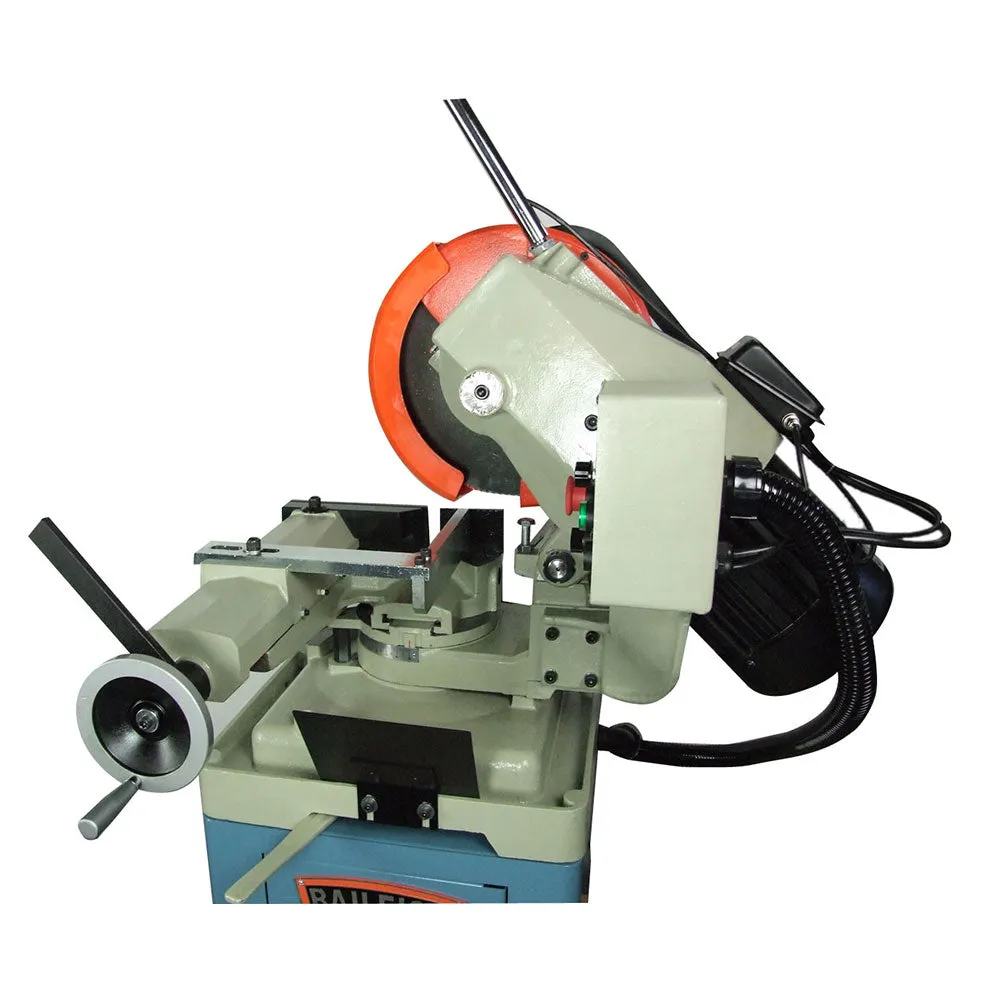

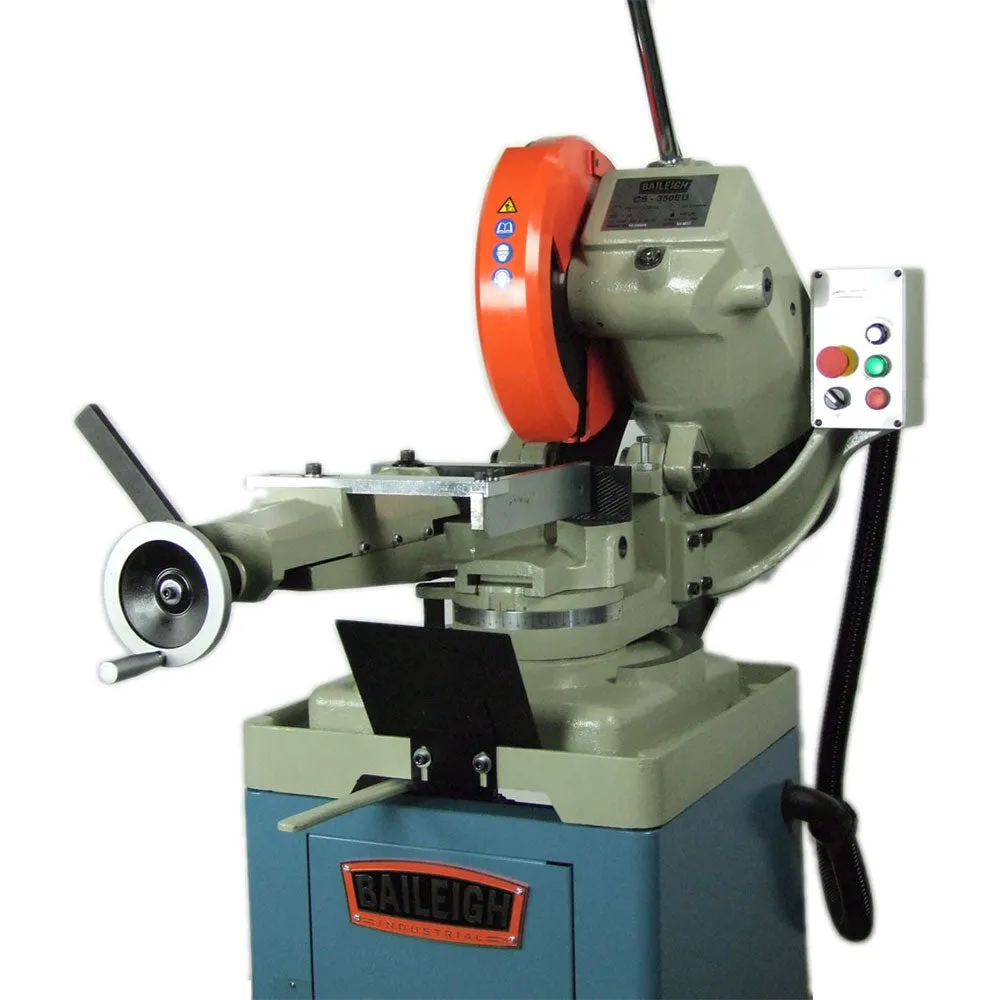

Features

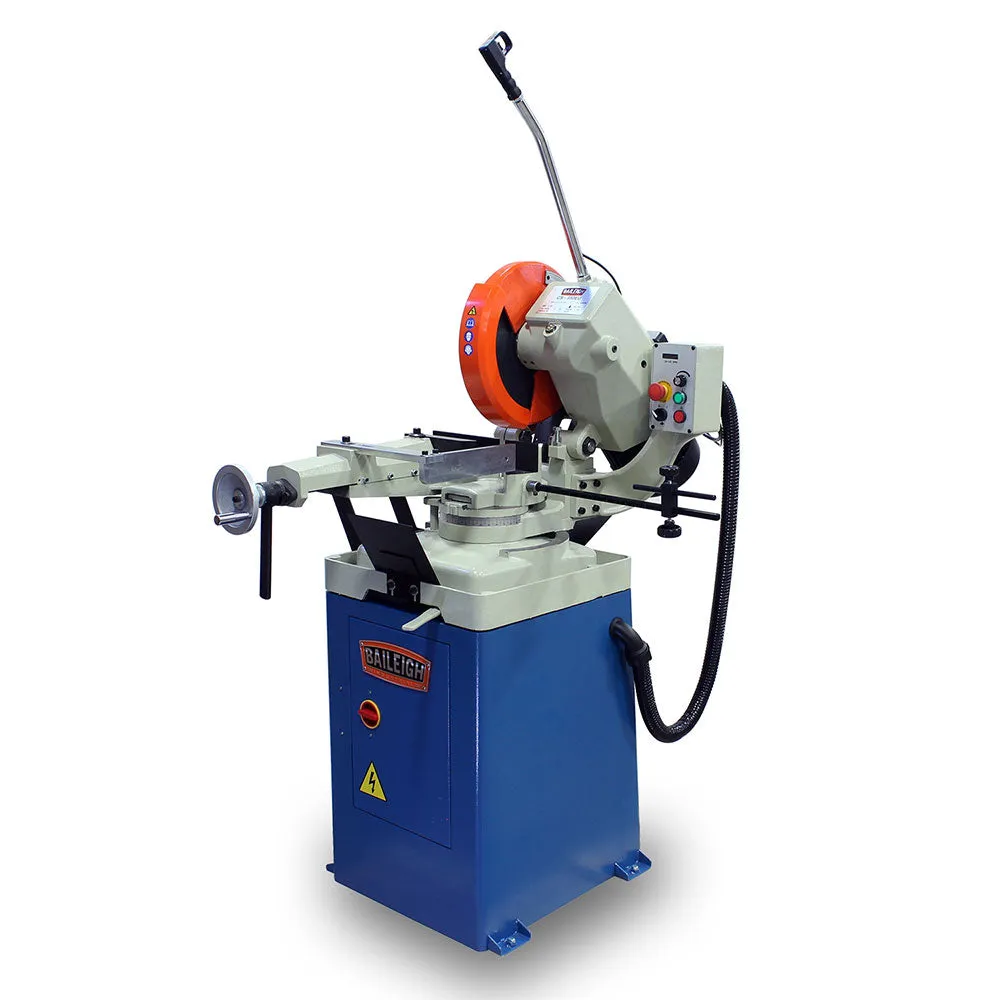

- Circular cold saw takes a 14” blade (included).
- 4.7” round tube capacity at 90°.
- Cold saw machine cuts through solids, tubing, and pipe.

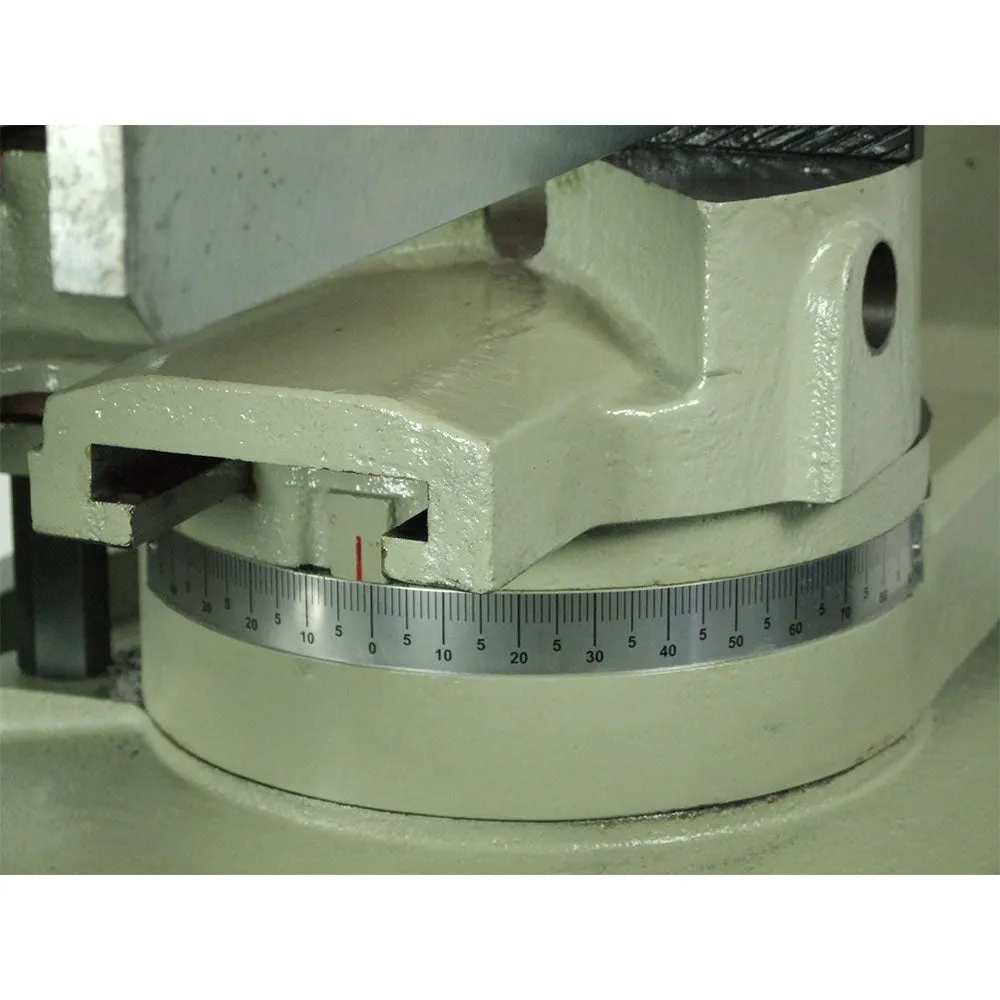

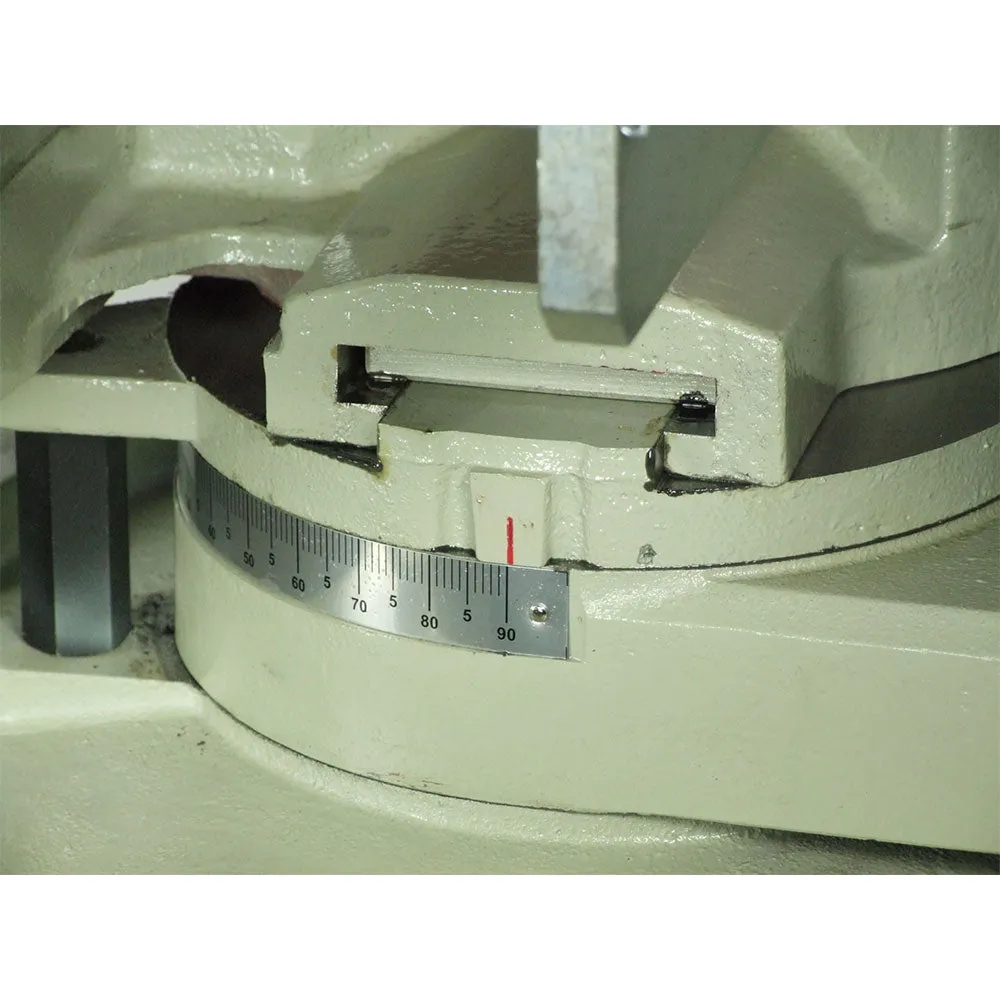

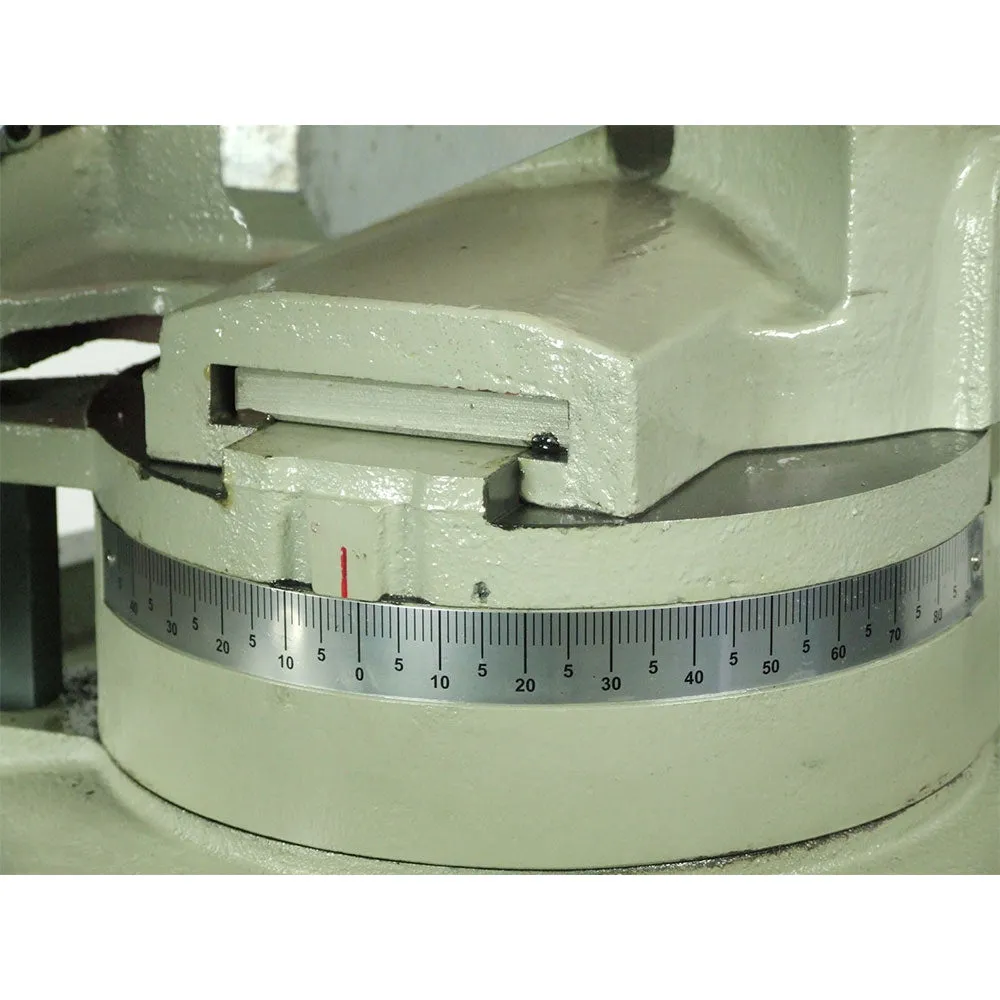

- Miters 45° left and right and can slot perpendicular to the material.

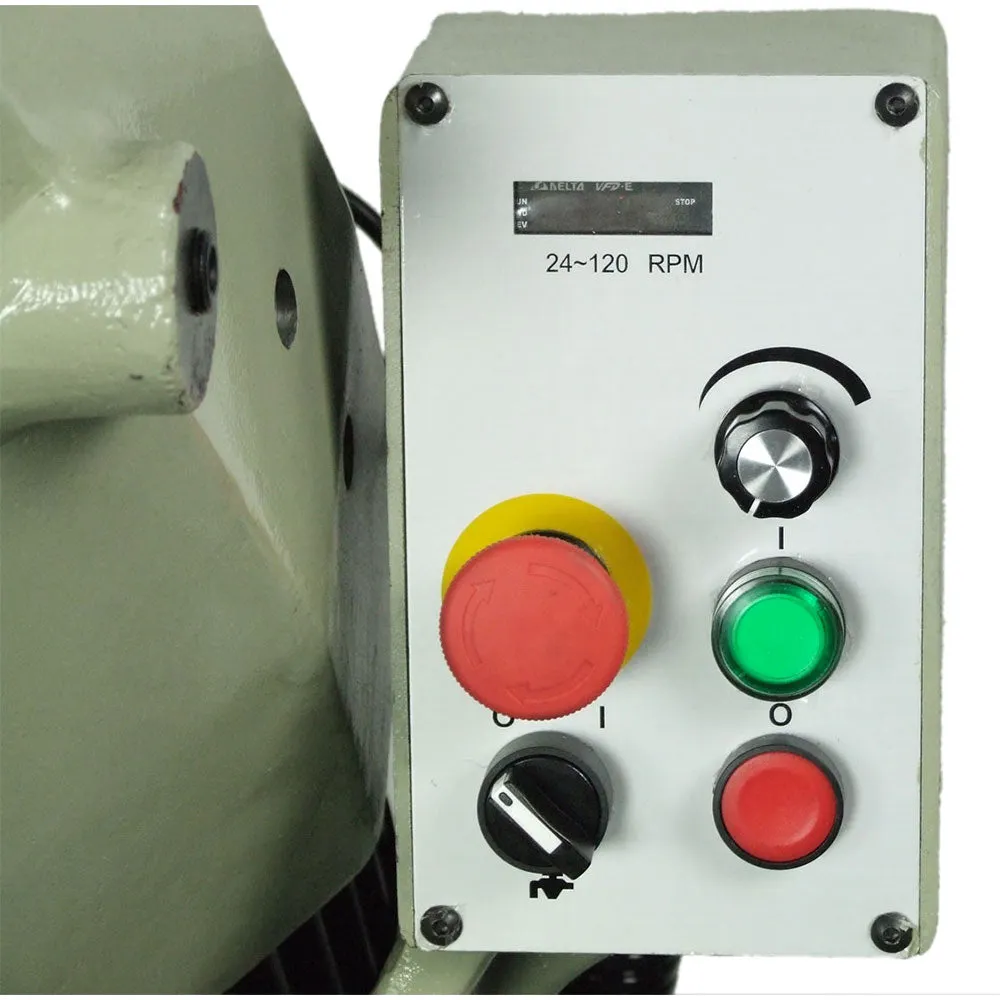

- Finetune the variable speed from 24 to 120 rpm to improve cut quality.
- Inverter-driven motor lets you adjust the blade speed with a dial to cover most applications.
- Digital readout shows the blade speed to assist with repeatability.
- 3 hp motor, coupled to a direct-drive gearbox, allows the blade to cut through the material chatter-free, so that blades last longer.
- Runs on 220-volt single-phase power and will work in almost any shop.

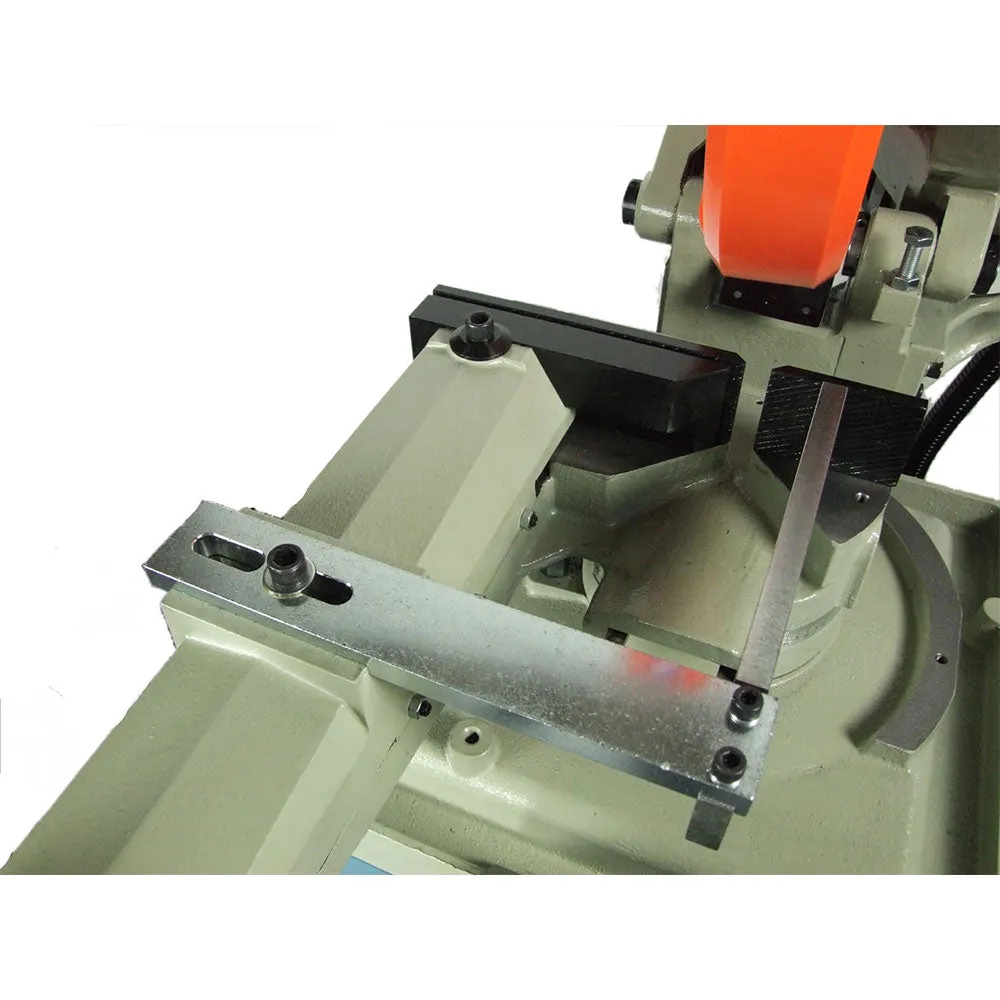

- European-style vise helps increase production with a taper lock system that speeds up clamping and unclamping.
- Vise clamps on both sides of the cut to reduce chatter and increase blade life.
- Serrated jaws provide maximum hold on the material.
- Thick cast iron base, mounted on a heavy steel stand, stabilizes the saw to ensure accurate cutting for many years.
- Powerful coolant pump lubricates the blade and washes metal chips away.
- Flood coolant system allows for mill-like cuts, prolongs blade and saw lifespan, and reduces operator effort.
What's in The Box
- CS-350EU - VAriable Speed Circular Cold Saw
- Owner's Manual
Warranty
- 1 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications

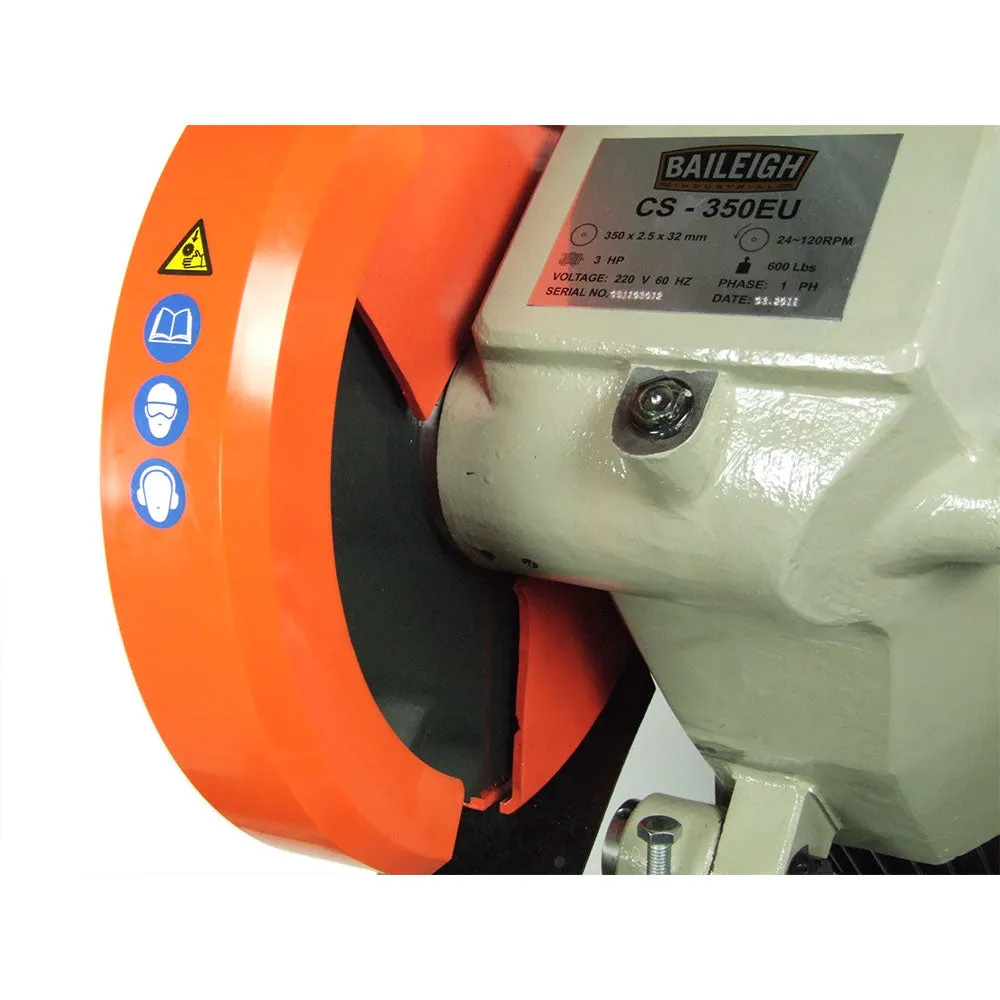

| SKU | CS-350EU |
| Power | 220V / 1-phase |
| Max. Blade Diameter | 14" |
| Operation | Manual |
| Head Miter | 45° Left / 45° Right |
| Round Solid at 45° | 3" |
| Square Tube at 45° | 3.5" 3.5" |
| Round Tube at 45° | 4" |
| Rectangle Tube at 45° | 3.5" x 2.8" |
| Round Solid at 90° | 3.5" |
| Rectangle Tube at 90° | 6.3" x 3.5" |
| Square Tube at 90° | 4" x 4" |
| Round Tube at 90° | 4.7" |
| Coolant System | Yes |
| Vice Style | Single Action with Cam Lock |
| Max. Vice Opening | 6.5" |

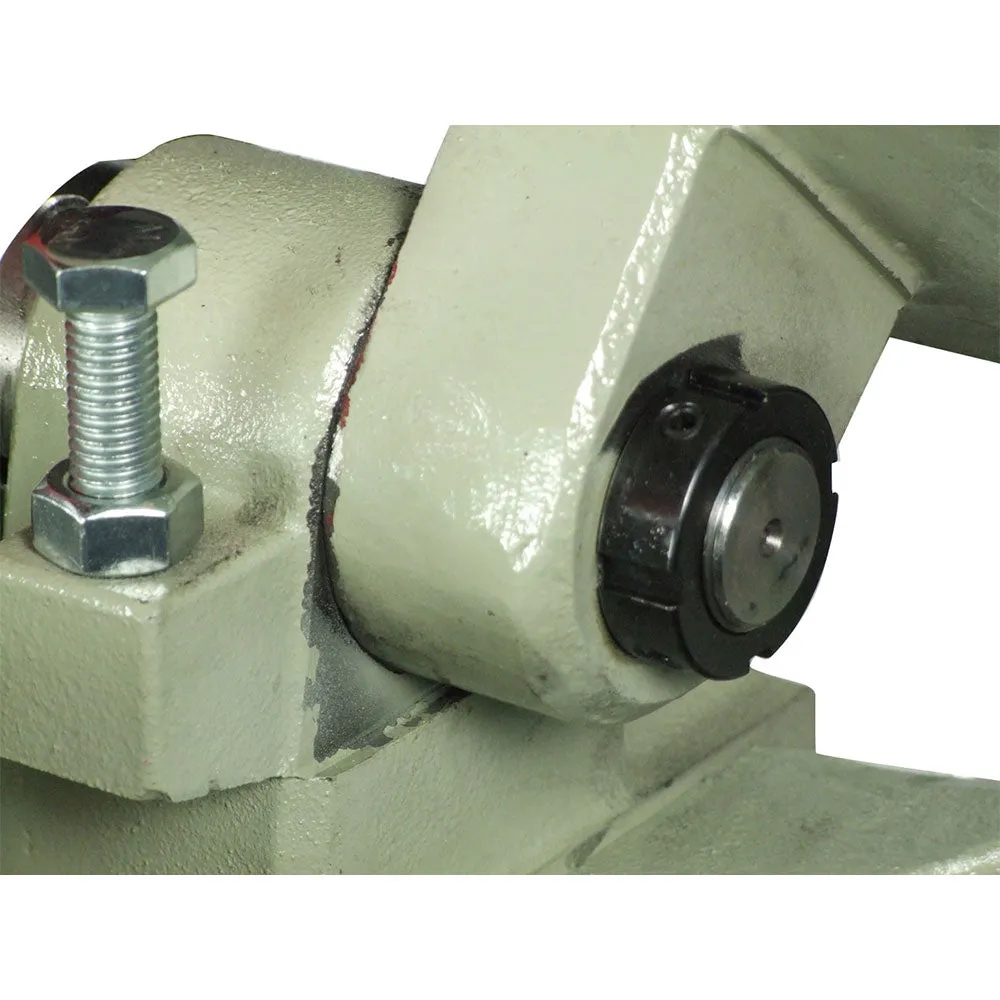

| Head Style | Pivot |
| Arbor Size | 1.26" |
| Motor | 3 hp |
| Capacity Round 45° | 4" |
| Blade Speed | 24 - 120 (rpm) |
| Shipping Dimensions (Inches) | 60x44x62 |
| Weight | 720 lbs |
